12853169-S

MAKE SURE TO SCROLL THE ENTIRE BOX TO ENSURE ALL INFORMATION  IS VIEWED

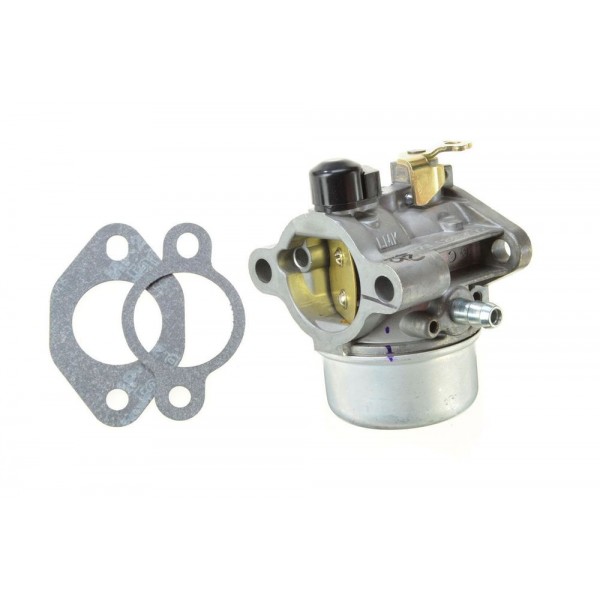

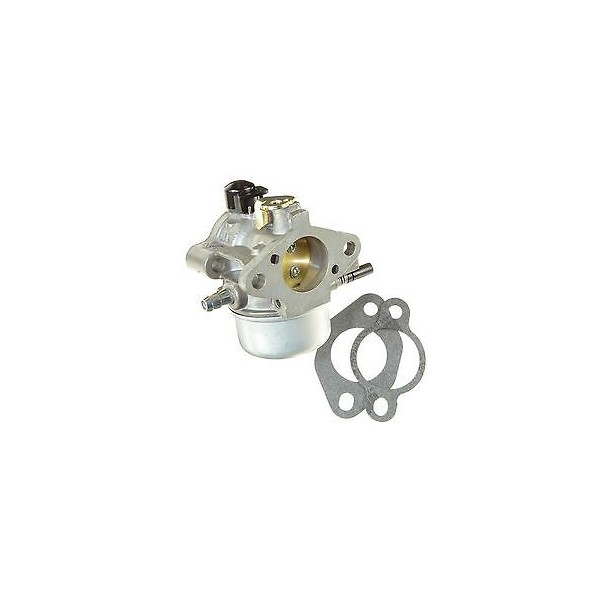

Kit Includes:
Description                                                 Qty
GASKET, CARBURETOR (KM)    92-339        1
GASKET, AIR CLEANER BASE          92-34    1
CARB (SRC,NO SOLENOID W/FUEL PUMP)    1

Also Available for Service:
Material #        Description
12 032 06-S        SEAL, SOLENOID
12 041 01-S        GASKET, CARBURETOR
12 041 02-S        GASKET, AIR CLEANER BASE
12 041 05-S        GASKET, FUEL BOWL
12 144 17-S        USE 12 757 08-S KIT
12 146 12-S        PLATE, CHOKE
12 158 01-S        BUSHING, CHOKE
12 173 06-S        CAP, CHOKE LEVER
12 454 03-S        TIE, CABLE
12 755 92-S        KIT, HIGH ALTITUDE ( 10,000 FT)
12 757 02-S        KIT, REPAIR FLOAT
12 757 03-S        KIT, REPAIR CARBURETOR
12 757 08-S        KIT, CHOKE REPAIR
12 757 37-S        KIT, REPAIR BOWL REPLACEMENT
20 755 09-S        KIT, HIGH ALTITUDE (5-10,000 FT)
25 041 03-S        GASKET, BOWL SCREW
25 086 27-S        SCREW, VALVE
25 113 38-S        DECAL, HIGH ALTITUDE
25 597 06-S        SEALER, LOCTITE
